ITE and Medical applications

SNP-G04 (40W), SNP-GK6 (60W), SNP-G12 (120W),

SNP-G16 (160W), SNP-G20 (200W), SNP-G25 (250W),

SNP-E30(300W, "G20" metal case with Fan),

SNP-G30 (300W), SNP-G40 (400W), SNP-G60 (600W)

Output Specifications:
Rated Power Model No. OUTPUT Size WxLxH

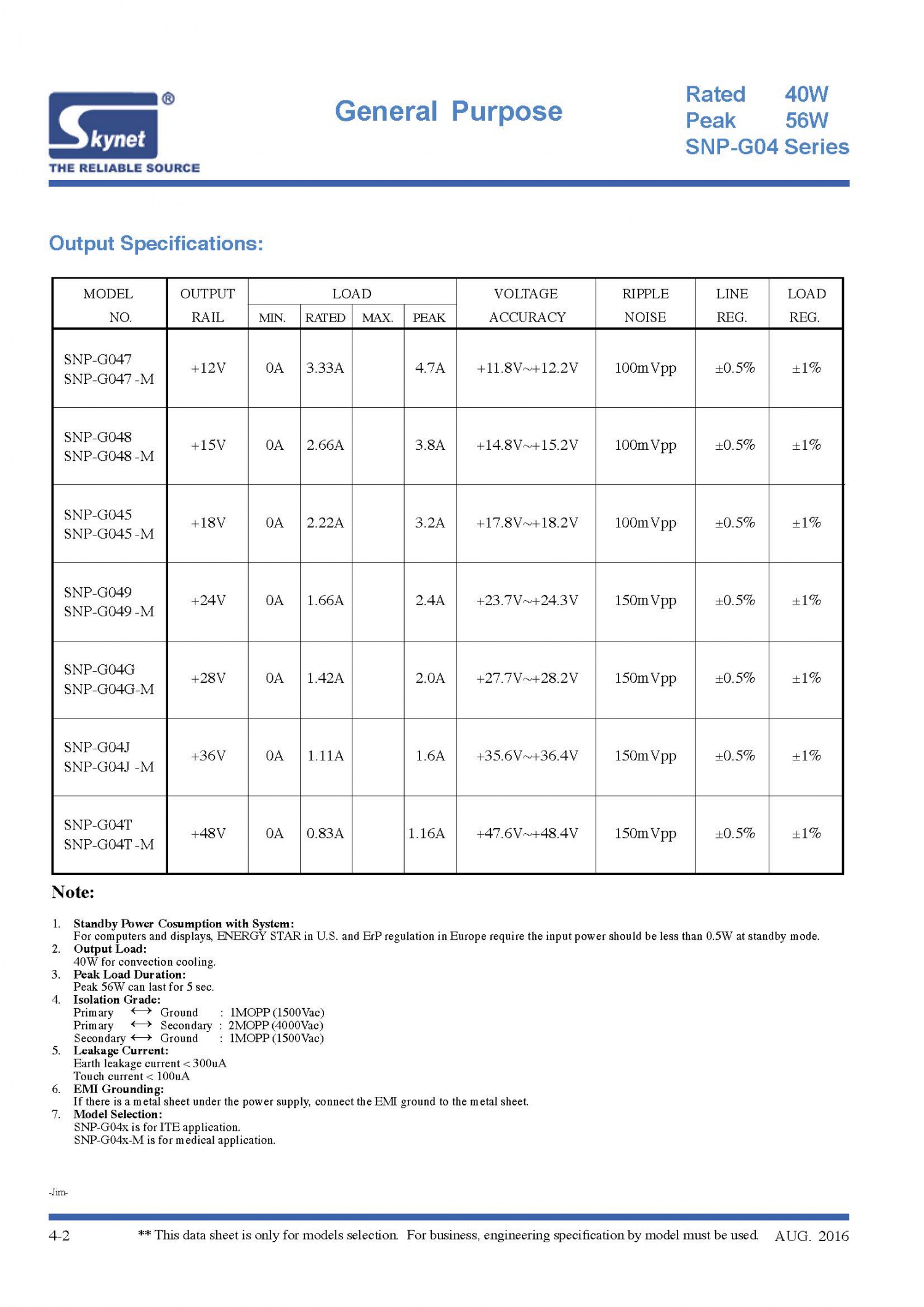

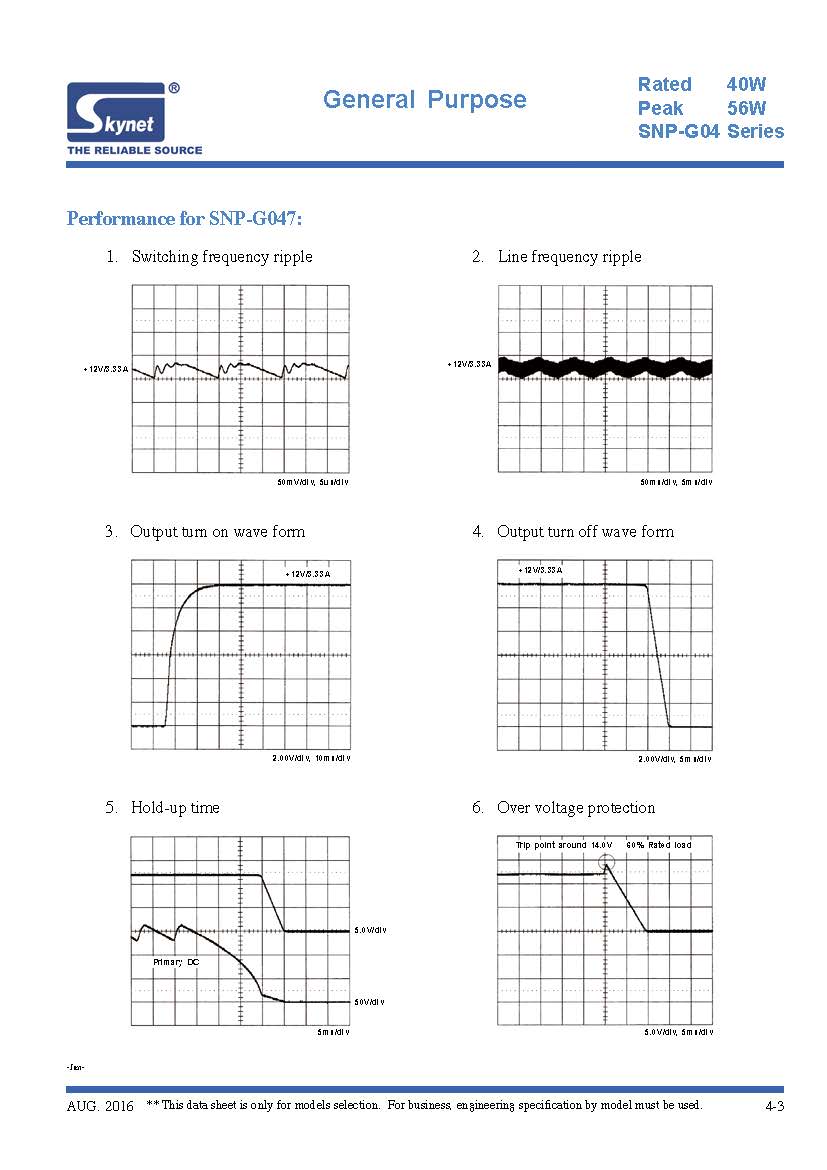

40W SNP-G047 +12V/3.33A 2"x3"x0.91"
40W SNP-G047-M +12V/3.33A 2"x3"x0.91"
40W SNP-G048 +15V/2.66A 2"x3"x0.91"
40W SNP-G048-M +15V/2.66A 2"x3"x0.91"
40W SNP-G045 +18V/2.22A 2"x3"x0.91"
40W SNP-G045-M +18V/2.22A 2"x3"x0.91"
40W SNP-G049 +24V/1.66A 2"x3"x0.91"
40W SNP-G049-M +24V/1.66A 2"x3"x0.91"
40W SNP-G04G +28V/1.42A 2"x3"x0.91"
40W SNP-G04G-M +28V/1.42A 2"x3"x0.91"
40W SNP-G04J +36V/1.11A 2"x3"x0.91"
40W SNP-G04J-M +36V/1.11A 2"x3"x0.91"
40W SNP-G04T +48V/0.83A 2"x3"x0.91"
40W SNP-G04T-M +48V/0.83A 2"x3"x0.91"

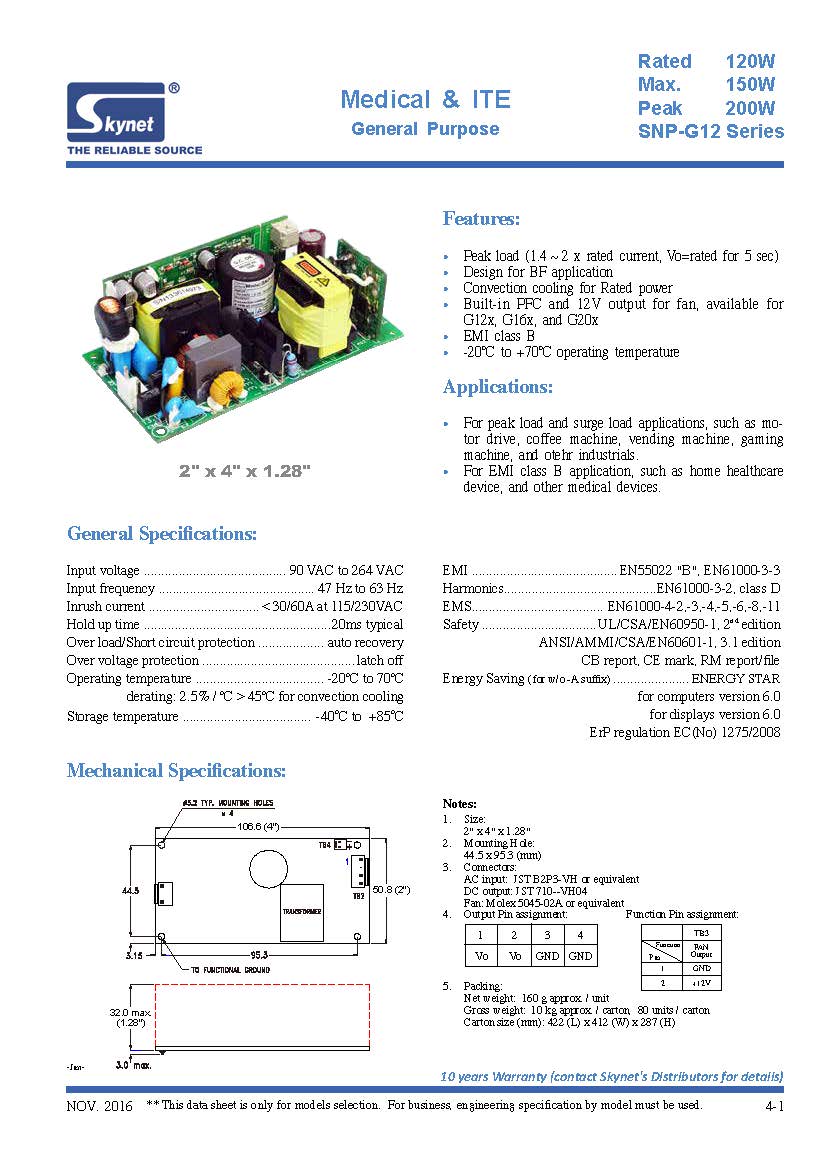

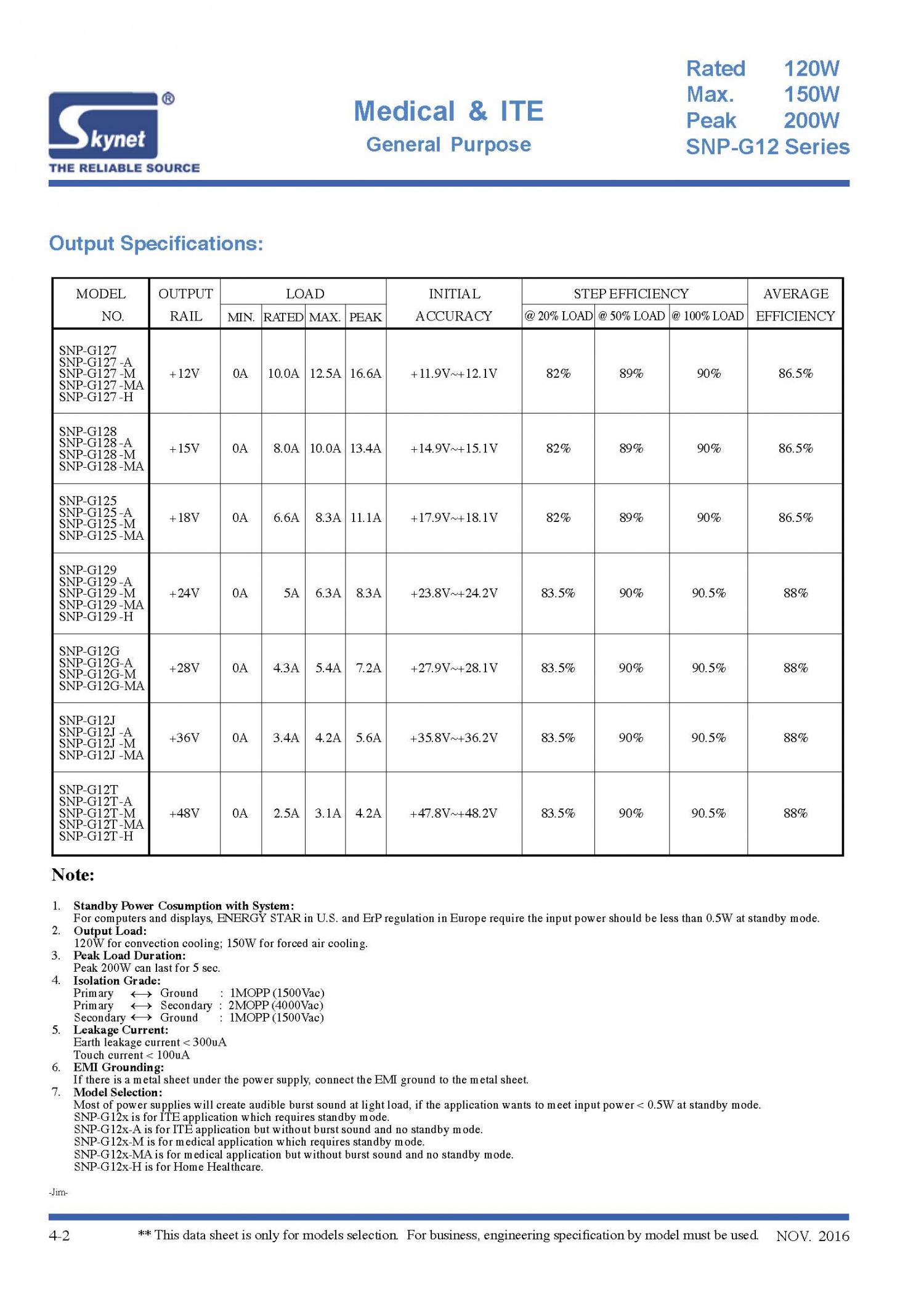

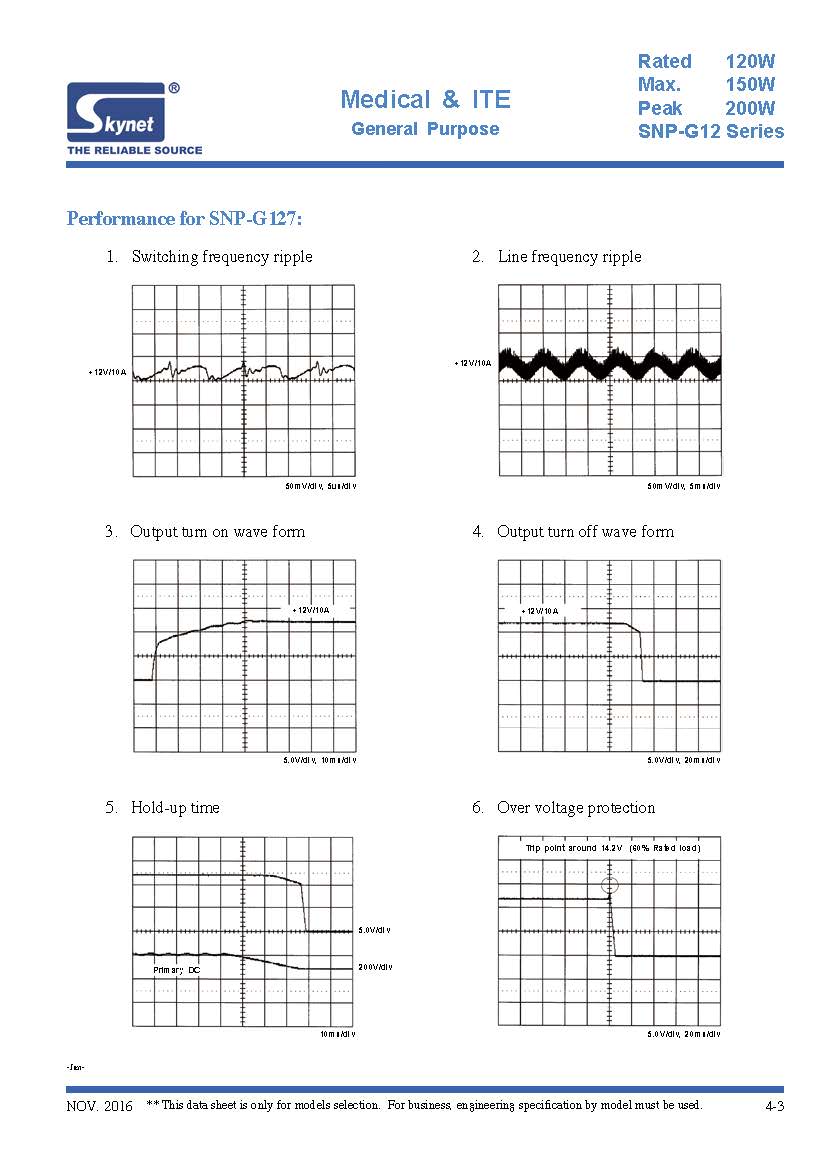

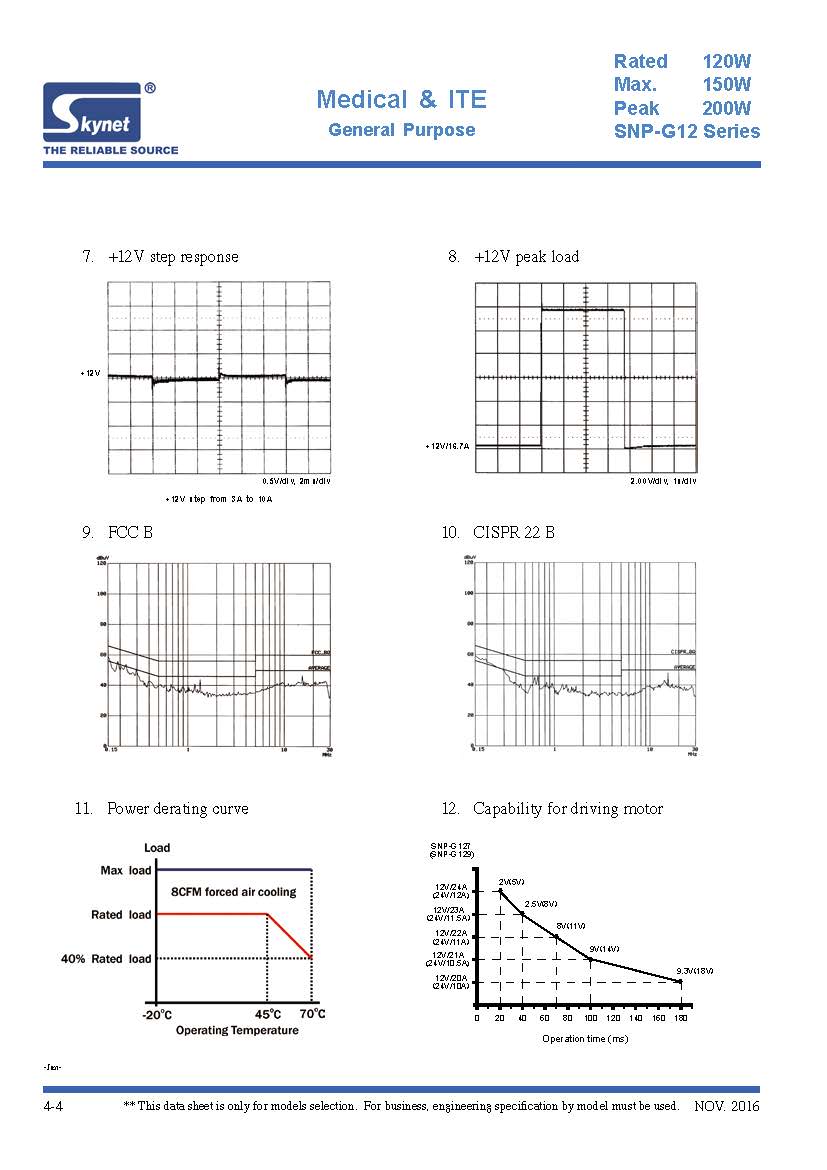

120W SNP-G127 +12V/10.00A 2"x4.2"x1.28"
120W SNP-G127-A +12V/10.00A 2"x4.2"x1.28"
120W SNP-G127-M +12V/10.00A 2"x4.2"x1.28"
120W SNP-G127-MA +12V/10.00A 2"x4.2"x1.28"
120W SNP-G127-H +12V/10.00A 2"x4.2"x1.28"
120W SNP-G128 +15V/8.0A 2"x4.2"x1.28"
120W SNP-G128-A +15V/8.00A 2"x4.2"x1.28"
120W SNP-G128-M +15V/8.00A 2"x4.2"x1.28"
120W SNP-G128-MA +15V/8.00A 2"x4.2"x1.28"
120W SNP-G125 +18V/6.60A 2"x4.2"x1.28"
120W SNP-G125-A +18V/6.60A 2"x4.2"x1.28"
120W SNP-G125-M +18V/6.60A 2"x4.2"x1.28"
120W SNP-G125-MA +18V/6.60A 2"x4.2"x1.28"
120W SNP-G129 +24V/5.00A 2"x4.2"x1.28"
120W SNP-G129-A +24V/5.00A 2"x4.2"x1.28"
120W SNP-G129-M +24V/5.00A 2"x4.2"x1.28"
120W SNP-G129-MA +24V/5.00A 2"x4.2"x1.28"
120W SNP-G129-H +24V/5.00A 2"x4.2"x1.28"
120W SNP-G12G +28V/4.30A 2"x4.2"x1.28"
120W SNP-G12G-A +28V/4.30A 2"x4.2"x1.28"
120W SNP-G12G-M +28V/4.30A 2"x4.2"x1.28"
120W SNP-G12G-MA +28V/4.30A 2"x4.2"x1.28"
120W SNP-G12J +36V/3.40A 2"x4.2"x1.28"
120W SNP-G12J-A +36V/3.40A 2"x4.2"x1.28"
120W SNP-G12J-M +36V/3.40A 2"x4.2"x1.28"
120W SNP-G12J-MA +36V/3.40A 2"x4.2"x1.28"
120W SNP-G12T +48V/2.50A 2"x4.2"x1.28"
120W SNP-G12T-A +48V/2.50A 2"x4.2"x1.28"
120W SNP-G12T-M +48V/2.50A 2"x4.2"x1.28"
120W SNP-G12T-MA +48V/2.50A 2"x4.2"x1.28"
120W SNP-G12T-H +48V/2.50A 2"x4.2"x1.28"

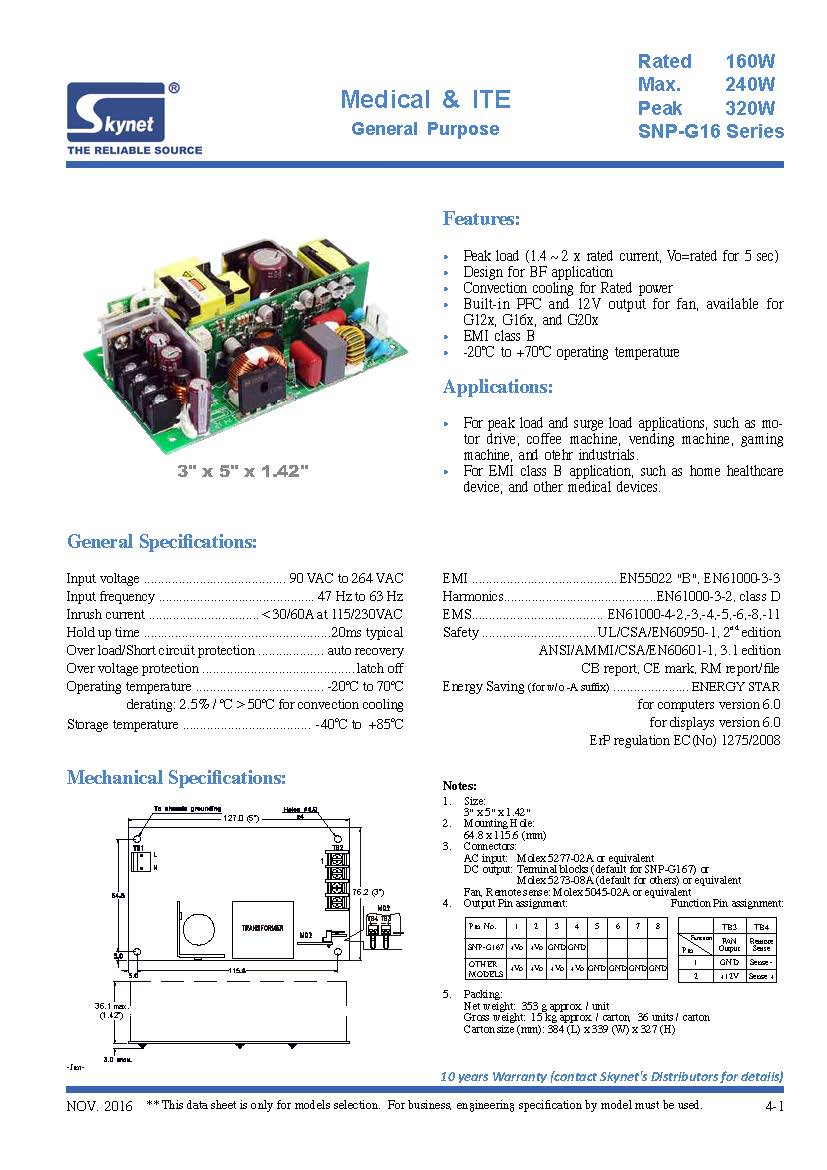

160W SNP-G167 +12V/13.30A 3"x5"x1.44"
160W SNP-G167-A +12V/13.30A 3"x5"x1.44"
160W SNP-G167-M +12V/13.30A 3"x5"x1.44"
160W SNP-G167-MA +12V/13.30A 3"x5"x1.44"
160W SNP-G167-U +12V/13.30A 3.3"x5"x1.7"
160W SNP-G167-UA +12V/13.30A 3.3"x5"x1.7"
160W SNP-G167-UM +12V/13.30A 3.3"x5"x1.7"
160W SNP-G167-U5 +12V/13.30A 3.3"x5"x1.7"
160W SNP-G167-C +12V/13.30A 3.3"x5"x1.7"
160W SNP-G167-CA +12V/13.30A 3.3"x5"x1.7"
160W SNP-G167-CM +12V/13.30A 3.3"x5"x1.7"
160W SNP-G167-C5 +12V/13.30A 3.3"x5"x1.7"
160W SNP-G168 +15V/10.66A 3"x5"x1.44"
160W SNP-G168-A +15V/10.66A 3"x5"x1.44"
160W SNP-G168-M +15V/10.66A 3"x5"x1.44"
160W SNP-G168-MA +15V/10.66A 3"x5"x1.44"
160W SNP-G168-U +15V/10.66A 3.3"x5"x1.7"
160W SNP-G168-UA +15V/10.66A 3.3"x5"x1.7"
160W SNP-G168-UM +15V/10.66A 3.3"x5"x1.7"
160W SNP-G168-U5 +15V/10.66A 3.3"x5"x1.7"
160W SNP-G168-C +15V/10.66A 3.3"x5"x1.7"
160W SNP-G168-CA +15V/10.66A 3.3"x5"x1.7"
160W SNP-G168-CM +15V/10.66A 3.3"x5"x1.7"
160W SNP-G168-C5 +15V/10.66A 3.3"x5"x1.7"
160W SNP-G165 +18V/8.88A 3"x5"x1.44"
160W SNP-G165-A +18V/8.88A 3"x5"x1.44"
160W SNP-G165-M +18V/8.88A 3"x5"x1.44"
160W SNP-G165-MA +18V/8.88A 3"x5"x1.44"
160W SNP-G165-U +18V/8.88A 3.3"x5"x1.7"
160W SNP-G165-UA +18V/8.88A 3.3"x5"x1.7"
160W SNP-G165-UM +18V/8.88A 3.3"x5"x1.7"
160W SNP-G165-U5 +18V/8.88A 3.3"x5"x1.7"
160W SNP-G165-C +18V/8.88A 3.3"x5"x1.7"
160W SNP-G165-CA +18V/8.88A 3.3"x5"x17"
160W SNP-G165-CM +18V/8.88A 3.3"x5"x1.7"
160W SNP-G165-C5 +18V/8.88A 3.3"x5"x1.7"
160W SNP-G169 +24V/6.66A 3"x5"x1.44"
160W SNP-G169-A +24V/6.66A 3"x5"x1.44"
160W SNP-G169-M +24V/6.66A 3"x5"x1.44"
160W SNP-G169-MA +24V/6.66A 3"x5"x1.44"
160W SNP-G169-U +24V/6.66A 3.3"x5"x1.7"
160W SNP-G169-UA +24V/6.66A 3.3"x5"x1.7"
160W SNP-G169-UM +24V/6.66A 3.3"x5"x1.7"
160W SNP-G169-U5 +24V/6.66A 3.3"x5"x1.7"
160W SNP-G169-C +24V/6.66A 3.3"x5"x1.7"
160W SNP-G169-CA +24V/6.66A 3.3"x5"x1.7"
160W SNP-G169-CM +24V/6.66A 3.3"x5"x1.7"
160W SNP-G169-C5 +24V/6.66A 3.3"x5"x1.7"
160W SNP-G16G +28V/5.70A 3"x5"x1.44"
160W SNP-G16G-A +28V/5.70A 3"x5"x1.44"
160W SNP-G16G-M +28V/5.70A 3"x5"x1.44"
160W SNP-G16G-MA +28V/5.70A 3"x5"x1.44"
160W SNP-G16G-U +28V/5.70A 3.3"x5"x1.7"
160W SNP-G16G-UA +28V/5.70A 3.3"x5"x1.7"
160W SNP-G16G-UM +28V/5.70A 3.3"x5"x1.7"
160W SNP-G16G-U5 +28V/5.70A 3.3"x5"x1.7"
160W SNP-G16G-C +28V/5.70A 3.3"x5"x1.7"
160W SNP-G16G-CA +28V/5.70A 3.3"x5"x1.7"
160W SNP-G16G-CM +28V/5.70A 3.3"x5"x1.7"
160W SNP-G16G-C5 +28V/5.70A 3.3"x5"x1.7"
160W SNP-G16J +36V/4.45A 3"x5"x1.44"
160W SNP-G16J-A +36V/4.45A 3"x5"x1.44"
160W SNP-G16J-M +36V/4.45A 3"x5"x1.44"
160W SNP-G16J-MA +36V/4.45A 3"x5'x1.44"
160W SNP-G16J-U +36V/4.45A 3.3"x5"X1.7"
160W SNP-G16J-UA +36V/4.45A 3.3"x5"x1.7"
160W SNP-G16J-UM +36V/4.45A 3.3"x5"x1.7"
160W SNP-G16J-U5 +36V/4.45A 3.3"x5"x1.7"
160W SNP-G16J-C +36V/4.45A 3.3"x5"x1.7"
160W SNP-G16J-CA +36V/4.45A 3.3"x5"x1.7"
160W SNP-G16J-CM +36V/4.45A 3.3"x5"x1.7"
160W SNP-G16J-C5 +36V/4.45A 3.3"x5"x1.7"
160W SNP-G16T +48V/3.35A 3"x5"x1.44"
160W SNP-G16T-A +48V/3.35A 3"x5"x1.44"
160W SNP-G16T-M +48V/3.35A 3"x5"x1.44"
160W SNP-G16T-MA +48V/3.35A 3"x5"x1.44"
160W SNP-G16T-U +48V/3.35A 3.3"x5"x1.7"
160W SNP-G16T-UA +48V/3.35A 3.3"x5"x1.7"
160W SNP-G16T-UM +48V/3.35A 3.3"x5"x1.7"
160W SNP-G16T-U5 +48V/3.35A 3.3"x5"x1.7"
160W SNP-G16T-C +48V/3.35A 3.3"x5"x1.7"
160W SNP-G16T-CA +48V/3.35A 3.3"x5"x1.7"
160W SNP-G16T-CM +48V/3.35A 3.3"x5"x1.7"
160W SNP-G16T-C5 +48V.3.35A 3.3"x5"x1.7"

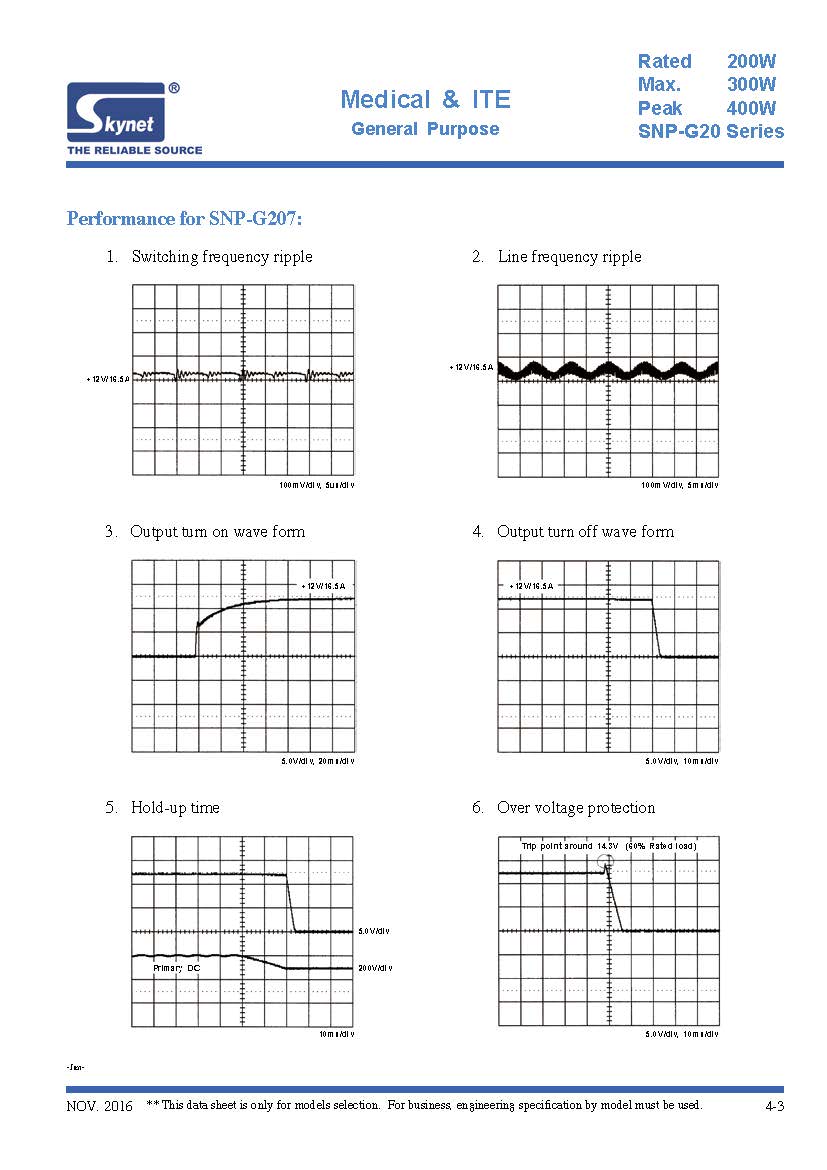

200W SNP-G207 +12V/16.50A 3"x5"x1.44"
200W SNP-G207-A +12V/16.50A 3"x5"x1.44"
200W SNP-G207-M +12V/16.50A 3"x5"x1.44"
200W SNP-G207-MA +12V/16.50A 3"x5"x1.44"
200W SNP-G207-U +12V/16.50A 3.3"x5"x1.7"
200W SNP-G207-UA +12V/16.50A 3.3"x5"x1.7"
200W SNP-G207-UM +12V/16.50A 3.3"x5"x1.7"
200W SNP-G207-U5 +12V/16.50A 3.3"x5"x1.7"
200W SNP-G207-C +12V/15.00A 3.3"x5"x1.7"
200W SNP-G207-CA +12V/15.00A 3.3"x5"x1.7"
200W SNP-G207-CM +12V/15.00A 3.3"x5"x1.7"
200W SNP-G207-C5 +12V/15.00A 3.3"x5"x1.7"
200W SNP-G208 +15V/12.00A 3"x5"x1.44"
200W SNP-G208-A +15V/12.00A 3"x5"x1.44"
200W SNP-G208-M +15V/12.00A 3"x5"x1.44"
200W SNP-G208-MA +15V/12.00A 3"x5"x1.44"
200W SNP-G208-U +15V/12.00A 3.3"x5"x1.7"
200W SNP-G208-UA +15V/12.00A 3.3"x5"x1.7"
200W SNP-G208-UM +15V/12.00A 3.3"x5"x1.7"
200W SNP-G208-U5 +15V/12.00A 3.3"x5"x1.7"
200W SNP-G208-C +15V/12.00A 3.3"x5"x1.7"
200W SNP-G208-CA +15V/12.00A 3.3"x5"x1.7"
200W SNP-G208-CM +15V/12.00A 3.3"x5"x1.7"
200W SNP-G208-C5 +15V/12.00A 3.3"x5"x1.7"
200W SNP-G205 +18V/11.10A 3"x5"x1.44"
200W SNP-G205-A +18V/11.10A 3"x5"x1.44"
200W SNP-G205-M +18V/11.10A 3"x5"x1.44"
200W SNP-G205-MA +18V/11.10A 3"x5"x1.44"
200W SNP-G205-U +18V/11.10A 3.3"x5"x1.7"
200W SNP-G205-UA +18V/11.10A 3.3"x5"x1.7"
200W SNP-G205-UM +18V/11.10A 3.3"x5"x1.7"
200W SNP-G205-U5 +18V/11.10A 3.3"x5"x1.7"
200W SNP-G205-C +18V/10.00A 3.3"x5"x1.7"
200W SNP-G205-CA +18V/10.00A 3.3"x5"x1.7"
200W SNP-G205-CM +18V/10.00A 3.3"x5"x1.7"
200W SNP-G205-C5 +18V/10.00A 3.3"x5"x1.7A
200W SNP-G209 +24V/8.40A 3"x5"x1.44"
200W SNP-G209-A +24V/8.40A 3"x5"x1.44"
200W SNP-G209-M +24V/8.40A 3"x5"x1.44"
200W SNP-G209-MA +24V/8.40A 3"x5"x1.44"
200W SNP-G209-U +24V/8.40A 3.3"x5"x1.7"
200W SNP-G209-UA +24V/8.40A 3.3"x5"x1.7"
200W SNP-G209-UM +24V/8.40A 3.3"x5"x1.7"
200W SNP-G209-U5 +24V/8.40A 3.3"x5"x1.7"
200W SNP-G209-C +24V/7.50A 3.3"x5"x1.7"
200W SNP-G209-CA +24V/7.50A 3.3"x5"x1.7"
200W SNP-G209-CM +24V/7.50A 3.3"x5"x1.7"
200W SNP-G209-C5 +24V/7.50A 3.3"x5"x1.7"
200W SNP-G20G +28V/7.20A 3"x5"x1.44"
200W SNP-G20G-A +28V/7.20A 3"x5"x1.44"
200W SNP-G20G-M +28V/7.20A 3"x5"x1.44"
200W SNP-G20G-MA +28V/7.20A 3"x5"x1.44"
200W SNP-G20G-U +28V/7.20A 3.3"x5"x1.7"
200W SNP-G20G-UA +28V/7.20A 3.3"x5"X1.7"
200W SNP-G20G-UM +28V/7.20A 3.3"x5"x1.7"
200W SNP-G20G-U5 +28V/7.20A 3.3"x5"x1.7"
200W SNP-G20G-C +28V/6.42A 3.3"x5"x1.7"
200W SNP-G20G-CA +28V/6.42A 3.3"x5"x1.7"
200W SNP-G20G-CM +28V/6.42A 3.3"x5"x1.7"
200W SNP-G20G-C5 +28V/6.42A 3.3"x5"x1.7"
200W SNP-G20J +36V/5.60A 3"x5"x1.44"
200W SNP-G20J-A +36V/5.60A 3"x5"x1.44"
200W SNP-G20J-M +36V/5.60A 3"x5"x1.44"
200W SNP-G20J-MA +36V/5.60A 3"x5"x1.44"
200W SNP-G20J-U +36V/5.60A 3.3"x5"x1.7"
200W SNP-G20J-UA +36V/5.60A 3.3"x5"x1.7"
200W SNP-G20J-UM +36V/5.60A 3.3"x5"x1.7"
200W SNP-G20J-U5 +36V/5.60A 3.3"x5"x1.7"
200W SNP-G20J-C +36V/5.00A 3.3"x5"x1.7"
200W SNP-G20J-CA +36V/5.00A 3.3"x5"X1.7"
200W SNP-G20J-CM +36V/5.00A 3.3"x5"x1.7"
200W SNP-G20J-C5 +36V/5.00A 3.3"x5"x1.7"
200W SNP-G20T +48V/4.20A 3"x5"x1.44"
200W SNP-G20T-A +48V/4.2A 3"x5"x1.44"
200W SNP-G20T-M +48V/4.2A 3"x5"x1.44"
200W SNP-G20T-MA +48V/4.2A 3"x5"x1.44"
200W SNP-G20T-U +48V/4.20A 3.3"x5"x1.7"
200W SNP-G20T-UA +48V/4.2A 3.3"x5"x1.7"
200W SNP-G20T-UM +48V/4.2A 3.3"x5"x1.7"
200W SNP-G20T-U5 +48V/4.2A 3.3"x5"x1.7"
200W SNP-G20T-C +48V/3.75A 3.3"x5"x1.7"
200W SNP-G20T-CA +48V/3.75A 3.3"x5"x1.7"
200W SNP-G20T-CM +48V/3.75A 3.3"x5"x1.7"
200W SNP-G20T-C5 +48V/3.75A 3.3"x5"x1.7"

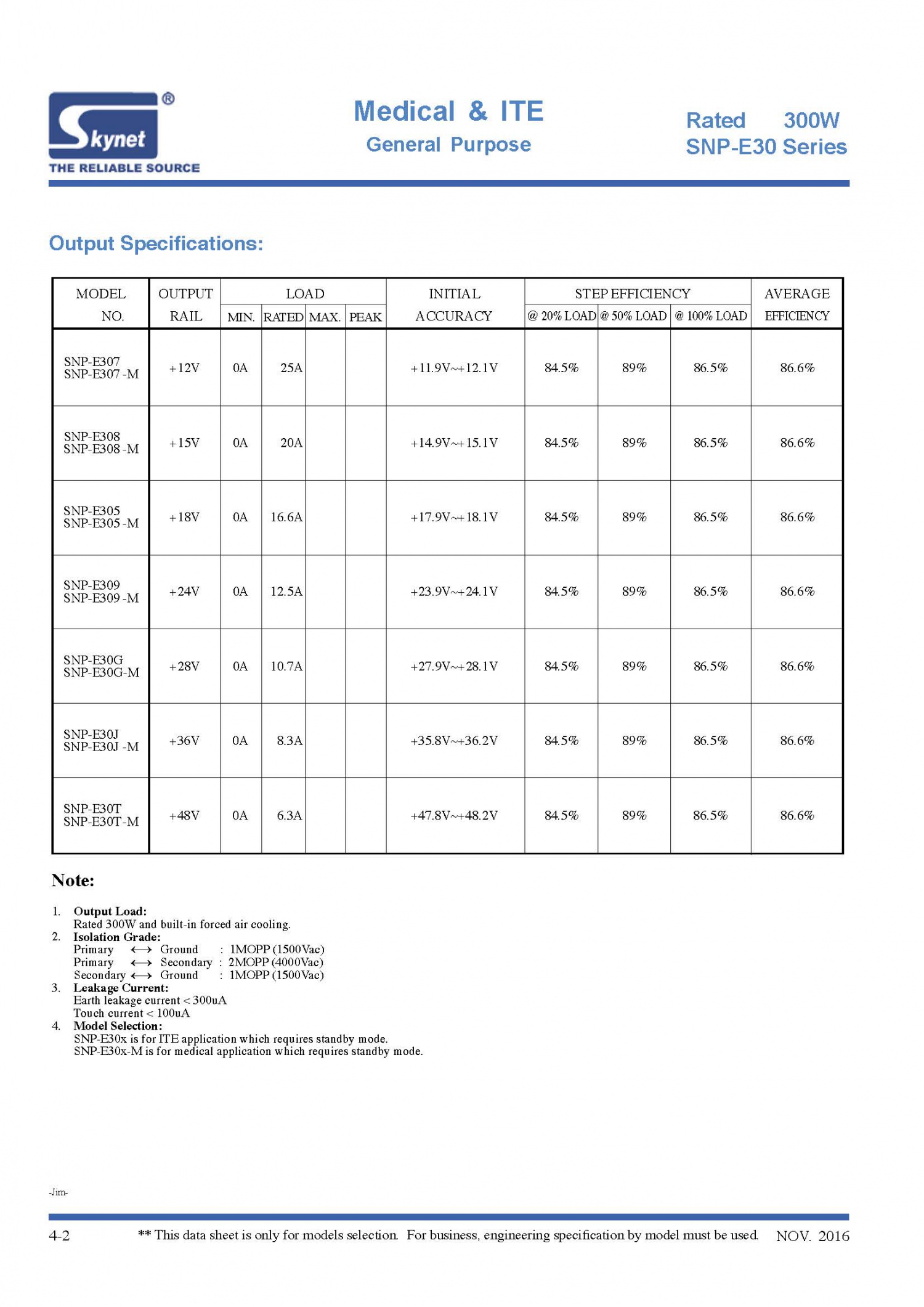

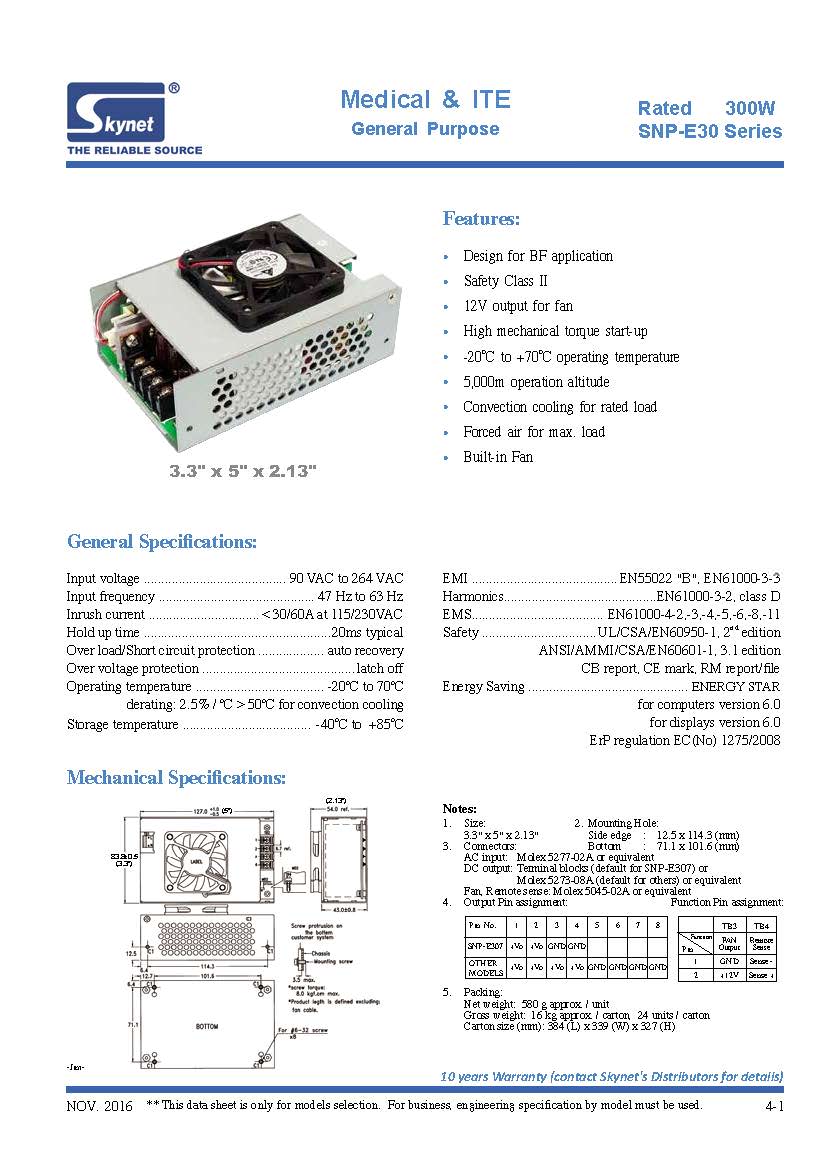

300W SNP-E307 +12V/25.00A 3.3"x5"x2.13"
300W SNP-E307-M +12V/25.00A 3.3"x5"x2.13"
300W SNP-E308 +15V/20.00A 3.3"x5"x2.13"
300W SNP-E308-M +15V/20.00A 3.3"x5"x2.13"
300W SNP-E305 +18V/16.60A 3.3"x5"x2.13"
300W SNP-E305-M +18V/16.60A 3.3"x5"x2.13"
300W SNP-E309 +24V/12.50A 3.3"x5"x2.13"
300W SNP-E309-M +24V/12.50A 3.3"x5"x2.13"
300W SNP-E309-MA +24V/12.50A 3.3"x5"x2.13"
300W SNP-E30G +28V/10.70A 3.3"x5"x2.13"
300W SNP-E30G-M +28V/10.70A 3.3"x5"x2.13"
300W SNP-E30J +36V/8.30A 3.3"x5"x2.13"
300W SNP-E30J-M +36V/8.30A 3.3"x5"x2.13"
300W SNP-E30T +48V/6.30A 3.3"x5"x2.13"
300W SNP-E30T-M +48V/6.30A 3.3"x5"x2.13"
400W SNP-G407 +12V/33.33A 4"x7"x1.654"
400W SNP-G409 +24V/16.66A 4"x7"x1.654"
